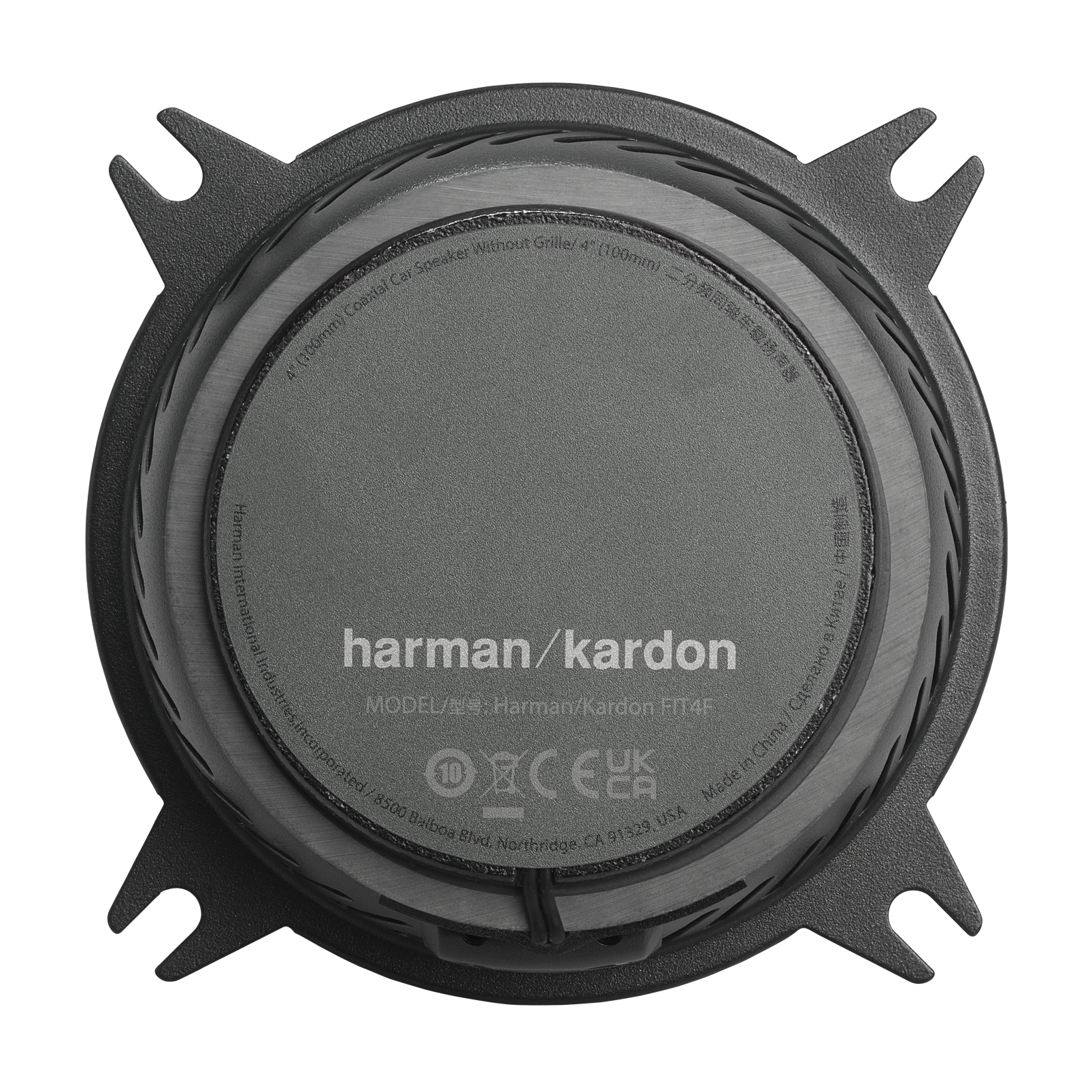

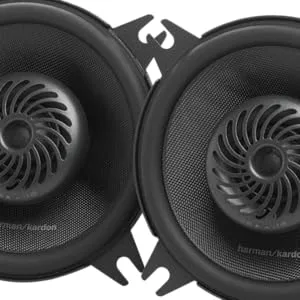

HKF4F – Fit Series – 4″ Coaxial Car Speaker without Grille

The Harman Kardon FIT4F is a 4-inch grille-less coaxial speaker designed for vehicle audio systems. This speaker delivers clear and powerful sound reproduction, ideal for enhancing your audio experience, even at high volumes.

Benefits:

• Optimal sound reproduction With 30W RMS and 240W peak power, the FIT4F delivers powerful sound performance, suitable for both low and high volumes.
• Wide frequency response The system has a frequency response of 70Hz to 40kHz, which ensures detailed audio reproduction across the entire frequency range.
• Advanced Thiele-Small parameters The FIT4F features advanced parameters such as a low Qts of 0.675, which ensures controlled performance and superior sound quality.

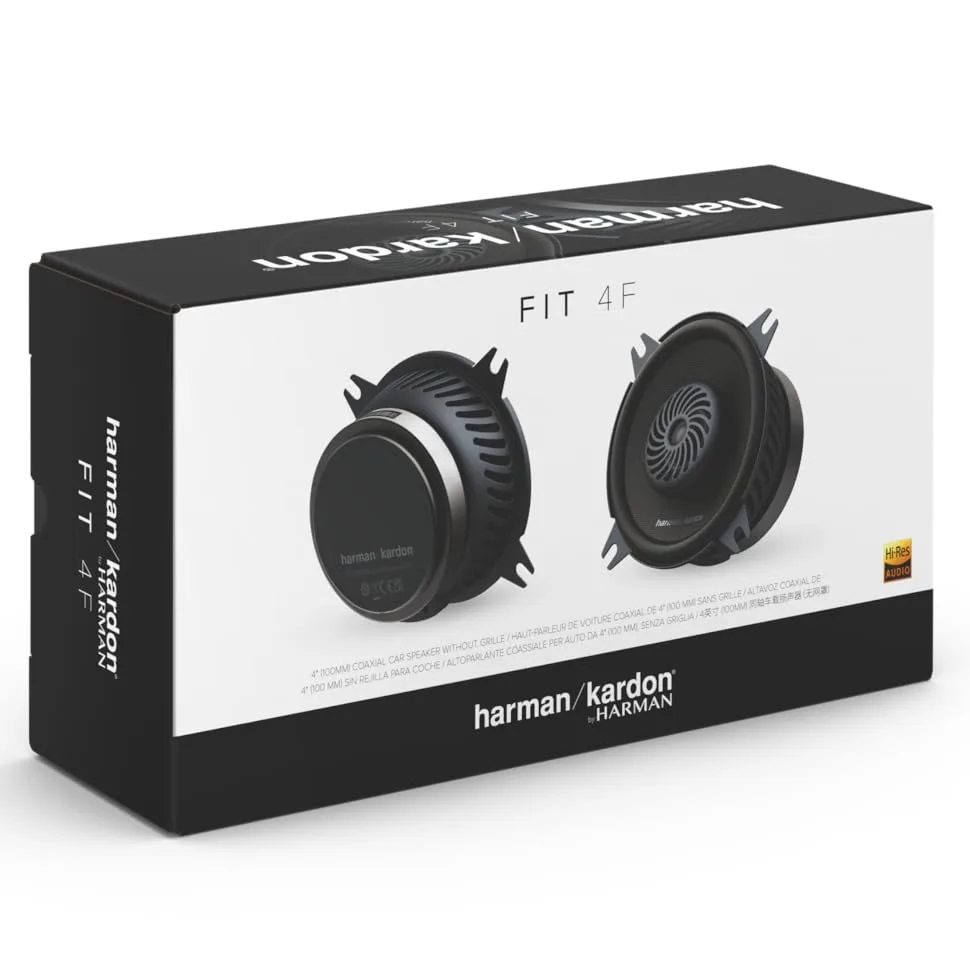

What’s in the box:

• 2x Harman Kardon FIT4F speakers
• 8x Screws
• 8x Speed clips
• 1x EVA foam gasket
• 1x User manual
• 2x Threaded flush-mount adapters

Specifications:

• Dimensions: 4 inches (100 mm)
• Power: 30W RMS, 240W peak
• Sensitivity (@ 2.83V): 90dB
• Frequency response: 70Hz – 40kHz
• Impedance: 4 ohms
• Crossover point: 8100 Hz
• Gross weight: 1.03 kg

From the manufacturer

Harman Kardon FIT 4F – Compact 100 mm (4") coaxial speakers for luxurious premium sound

The Harman Kardon FIT 4F coaxial speakers bring High-Resolution sound directly to the original flush-mounted openings of your vehicle. Developed for invisible factory integration, this extremely compact model is deliberately delivered without a protective grille. In addition to excellent audio quality, Harman Kardon attaches great importance to sustainability: the speakers are made from recycled post-consumer materials (PCR) to perfectly combine premium sound and environmental awareness.

Plus One fiberglass membrane

The extremely light and rigid fiberglass membranes use the patented Plus One technology. It offers a larger overall surface area than conventional speakers of the same size, leading to higher sensitivity and a more powerful, dynamic bass response with excellent musical character.

Compact & invisible integrated

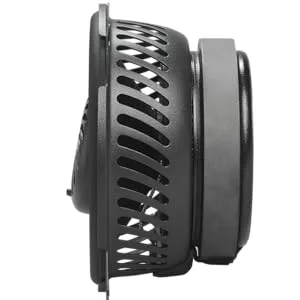

As a 4-inch coaxial system, the FIT 4F combines the woofer and tweeter into a single, extremely compact housing. Because the system comes without a surface grate, it fits seamlessly behind your car's original door or dashboard panels – for a perfect audio upgrade that you hear in all its glory but don't see.

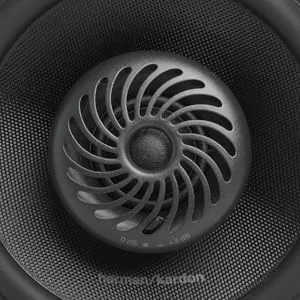

Hi-res textile domes (40 kHz)

The edge-driven textile dome design ensures flawless and smooth reproduction of the treble up to 40 kHz. This allows you to enjoy detailed, High-Resolution sound that, thanks to an extra-large voice coil, even at high volumes, always remains distortion-free and absolutely free of unpleasant hardness.

Harman Kardon FIT 4F

Technical details at a glance

Speaker Type: 100 mm (4") coaxial car speaker without protective grilleLoad capacity (RMS): 30 WBelastability(Peak / Peak): 240 WSensitivity(@ 2.83V): 90 dBFrequency range: 70 Hz – 40 kHzNominal impedance: 4 Ohms

What's in the box?

• 2x Speakers (woofers)
• 8x Clips
• 1x Foam Seal (Foam Gasket)
• 2 x Harman Kardon logo emblems
• 1x User Manual (OM)

Discover the ultimate soundstage: Compare the Harman Kardon component systems

Compare our premium 2-way component speaker systems. Whether it's the durable and flush-mountable FIT series or the uncompromising premium performance of the Flow series with special aluminium-ceramic membrane – here you will find the perfect upgrade for breathtaking, spacious audio reproduction in your vehicle.
