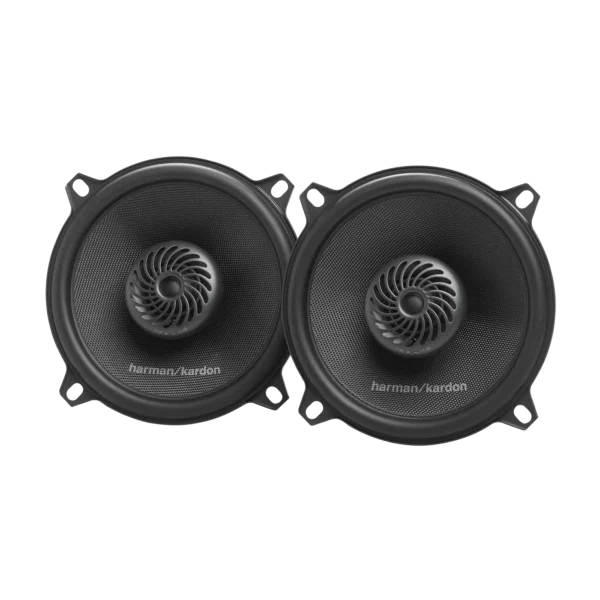

HKF5F – Fit Series – 5.25″ Coaxial Car Speaker without Grille

The Harman Kardon FIT5F is a 5-1/4-inch grille-less coaxial speaker designed for vehicle audio installations. This speaker delivers clear and powerful sound reproduction, ideal for enhancing your audio experience, even at high volumes.

Benefits:

• Optimal sound reproduction With 35W RMS and 280W peak power, the FIT5F delivers powerful sound performance, suitable for both low and high volumes.
• Wide frequency response The system has a frequency response of 60Hz to 40kHz, which ensures detailed audio reproduction across the entire frequency range.
• Advanced Thiele-Small parameters The FIT5F features advanced parameters such as a low Qts of 0.936, which ensures controlled performance and superior sound quality.

What’s in the box:

• 2x Harman Kardon FIT5F speakers
• 8x Screws
• 8x Speed clips
• 1x EVA foam gasket
• 1x User manual
• 2x Threaded flush-mount adapters

Specifications:

• Dimensions: 5-1/4 inch (133 mm)
• Power: 35W RMS, 280W peak
• Sensitivity (@ 2.83V): 90dB
• Frequency response: 60Hz – 40kHz
• Impedance: 4 ohms
• Crossover point: 6200 Hz
• Gross weight: 1.09 kg

From the manufacturer

Harman Kardon FIT 5F – 133mm (5-1/4") coaxial speaker for premium premium sound

The Harman Kardon FIT 5F coaxial speakers bring High-Resolution sound directly to the original flush-mounted openings of your vehicle. This 5-1/4-inch model has been developed for invisible factory integration and is deliberately supplied without a protective grille. In addition to excellent audio quality, Harman Kardon attaches great importance to sustainability: the speakers are made from recycled post-consumer materials (PCR) to perfectly combine premium sound and environmental awareness.

Plus One fiberglass membrane

The extremely light and rigid fiberglass membranes use the patented Plus One technology. It offers a larger overall surface area than conventional speakers of the same size, leading to higher sensitivity and a more powerful, dynamic bass response with excellent musical character.

Compact & invisible integrated

As a 133mm coaxial system, the FIT 5F combines the woofer and tweeter in a single housing. Because the system comes without a surface grate, it fits seamlessly behind your car's original door or dashboard panels – for a perfect audio upgrade that you hear in all its glory but don't see.

Hi-res textile domes (40 kHz)

The edge-driven textile dome design ensures flawless and smooth reproduction of the treble up to 40 kHz. This allows you to enjoy detailed, High-Resolution sound that, thanks to an extra-large voice coil, even at high volumes, always remains distortion-free and is absolutely free of unpleasant hardness or compression.

Harman Kardon FIT 5F

Technical details at a glance

Speaker Type: 133 mm (5-1/4") coaxial car speaker without protective grilleLoad capacity (RMS): 35 WBelastability(Peak / Peak): 280 WSensitivity(@ 2.83V): 90 dBFrequency range: 60 Hz – 40 kHzNominal impedance: 4 Ohms

What's in the box?

• 2x Speakers (woofers)
• 8x Clips
• 1x Foam Seal (Foam Gasket)
• 2 x Harman Kardon logo emblems
• 1x User Manual (OM)

Discover the ultimate soundstage: Compare the Harman Kardon component systems

Compare our premium 2-way component speaker systems. Whether it's the durable and flush-mountable FIT series or the uncompromising premium performance of the Flow series with special aluminium-ceramic membrane – here you will find the perfect upgrade for breathtaking, spacious audio reproduction in your vehicle.
