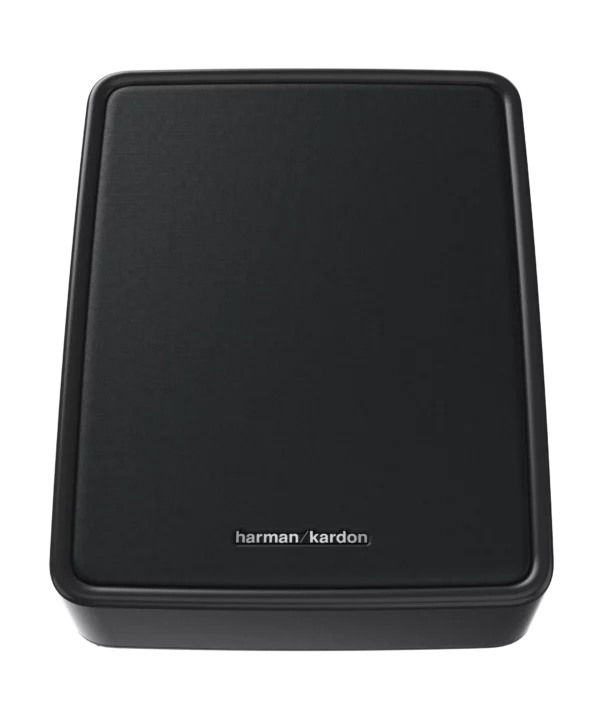

harman/kardon FEEL700

The Harman Kardon FEEL 700 is an ultra-compact, powerful under-seat subwoofer, designed to add deep, impactful bass to your audio system. With a built-in Class D amplifier, the unit delivers 125W RMS and is easily installed under the seat of your vehicle.

Benefits:

• Powerful bass in a compact size The FEEL 700 delivers deep bass without taking up much space, ideal for vehicles with limited space.
• Efficient Class D amplifier The amplifier produces minimal heat and requires little power, ensuring efficient and long-lasting operation.
• Flexible EQ settings With adjustable crossover and bass boost, the FEEL 700 can be easily tailored to the sound needs of your vehicle.

What’s in the box:

• 1x Harman Kardon FEEL 700 subwoofer
• 2x Wiring harness for power and speaker level input (300mm)
• 4x Mounting plates
• 8x M4x6 Philips screws
• 4x M4x25 Philips screws
• 1x 15A fuse
• 1x Safety sheet
• 1x User manual

Specifications:

• Driver: 7″ (165 mm) subwoofer
• Amplifier power: 125W RMS, 250W peak
• Frequency response: 40Hz – 150Hz
• Nominal impedance: 4 ohms
• Crossover frequency: 50Hz – 150Hz
• Bass boost: 0dB to +12dB @ 50Hz
• Dimensions (L x W x H): 10-1/4″ x 7-11/16″ x 2-5/16″ (260mm x 195mm x 58mm)
• Weight: 3.5kg

From the manufacturer

Legendary sound for your vehicle

With the FEEL 700, Harman Kardon closes the gap between compact design and powerful bass. This active underseat subwoofer brings our brand's acoustic excellence straight to your interior – for a natural and accurate reproduction of bass that takes any standard audio system to the next level.

Ultra-flat housing

With an installation height of only 58 mm (2.3 inches), the FEEL 700 disappears discreetly under almost any car seat. So you can enjoy full sound without losing valuable space in the passenger compartment or trunk.

Premium materials

The robust die-cast aluminium housing is covered with high-quality textiles that blend seamlessly with the flooring of modern vehicles. A chic aluminium badge completes the timeless design.

Simple serial circuit

Thanks to the smart Daisy-Chaining feature, you can easily connect a second device to double bass performance. The connection is simple and does not require complex new wiring.

Intelligent Class-D technology for maximum efficiency

Inside the FEEL 700 operates a highly efficient Class-D amplifier, specially developed to deliver maximum power with minimal heat generation. It protects your vehicle's electrical system with extremely low power consumption while providing the necessary power for deep, distortion-free frequencies.

Technical specifications overview:

• Driver: Powerful 7" (165mm) subwoofer
• Power: 125W RMS / 250W Max
• Frequency Range: 40 Hz – 150 Hz
• Fuse: 15A
• Max. Power consumption: 14A
• Size: 260mm x 195mm x 58mm
• Weight: 3.5kg
